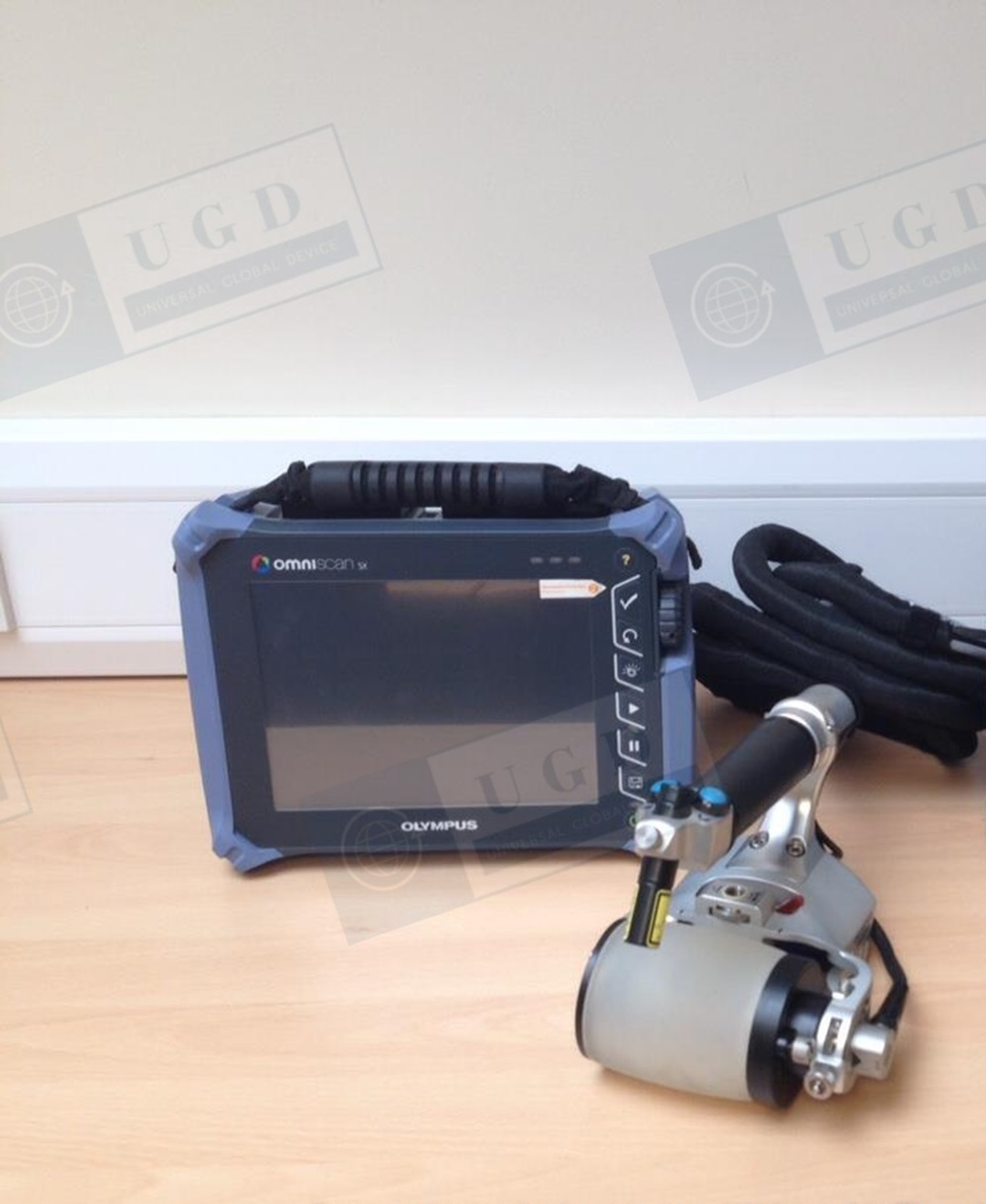

Olympus OmniScan SX Phased Array Flaw Detector

Olympus OmniScan SX Phased Array Flaw Detector Olympus OmniScan SX Phased Array Flaw Detector is a lightweight, cost-efficient, single-group flaw inspection device with two-axis encoding, data archiving and conventional UT, TOFD and 16:64PR PA capabilities. OmniScan SX models are 50% smaller and 33% lighter than the flagship OmniScan MX2. Equipped with a conventional UT channel for pulse-echo, pitch-catch or TOFD inspection, the Olympus OmniScan is designed for applications like TOFD weld inspection, phased array weld inspection, corrosion mapping, component inspection and composite inspection. Features: Lightweight, cost-efficient flaw detector UT, TOFD, and 16:64PR PA capabilities Two-axis encoding, data archiving 8.4 in. touch screen & OmniScan interface Simplified user interface The software interface was made simpler and the response time was reduced as part of a continual improvement effort to give clients the greatest experience possible. Some of the new features include: Interleave Improved accessibility with more interactive menus Curved geometry ray-tracing for longitudinal welds Export C-Scan Onboard compound scan Analysis attenuation gain New End-View with group merge Optimized main menus and wizards Scrolling layouts for easy interpretation Data Analysis and Reporting Data, reference, and measurement cursors for defect sizing Extensive readings database and predefined lists for trigonometry, flaw statistics on axes, volumetric position information, code-based acceptance criteria, corrosion mapping statistics, and more Views are linked for interactive analysis and automatically updated when performing off-line gate repositioning Optimized preconfigured layouts for quick and simple length, depth, and height sizing of flaws Applications Olympus now has a fresh, adaptable tool to add to its collection of original, creative, comprehensive market solutions designed to streamline the workflow and boost productivity. Sales Includes: – Olympus OmniScan SX 16:64 PA Ultrasonic Flaw Detector – A31 Weld Series phased array probe – DLA Dual Linear Array probe – Battery Pack – AC Adapter/Charger – Power Cord – User Manual On Cd-ROM – Carrying Case – Warranty Card – Calibration Certificate
