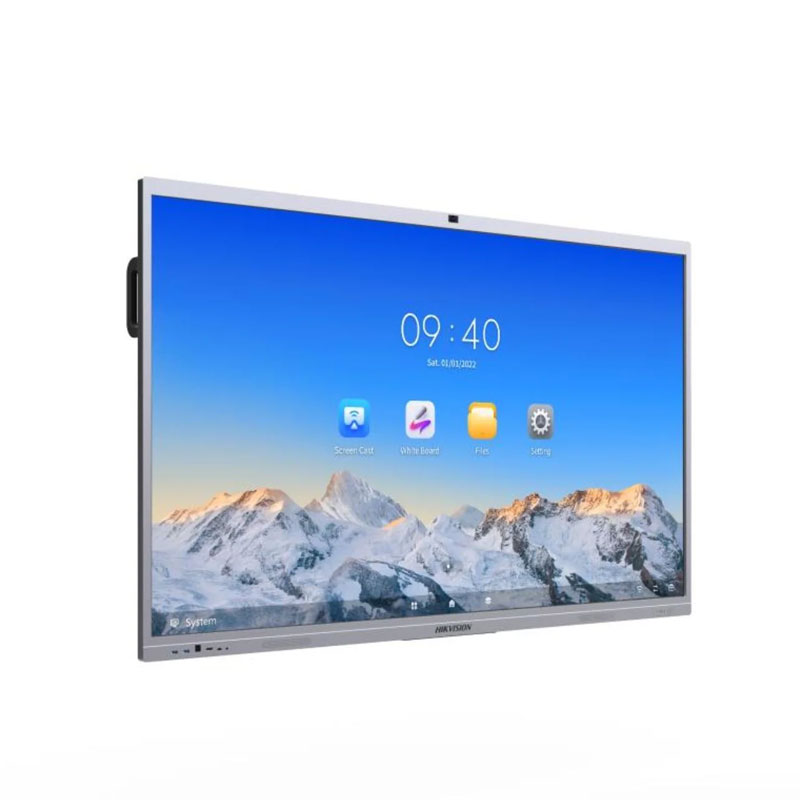

HIKVISION INTERACTIVE PANEL ANDROID (DS-D5C75RB/B)

HIKVISION INTERACTIVE PANEL ANDROID (DS-D5C75RB/B) 75-inch 4K Interactive Display UHD 4K display with resolution of 3840 × 2160. Anti-glare and anti-blocking design to ensure smooth interaction. Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system. Quick response, at most 50-points touch control and smooth writing experience. Built-in network switch chip saves a network switch. All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection. EDLA Certified Product Model Product ModelDS-D5C75RB/B Display Screen Size75 inch BacklightDLED Pixel Pitch0.14325(H) × 0.42975(V) mm Resolution3840 × 2160 @60 Hz Brightness400 cd/m² （Typ.） Color Depth10 bit Display Color1.07 G Response Time5 ms Panel TypeVA Contrast Ratio 5000:1 (Static) 30,000:1 (Dynamic) Color Gamut72% NTSC (CIE1931) (Typ.) Refresh Rate60 Hz Viewing Angle178° (H)/178° (V) Aspect Ratio16:9 Surface Hardness 9H (Pencil) 7 (Mohs) Surface GlassAnti-Glare Glass Surface Haze25% Haze Glass Bonding MethodZero Lamination Display Area1650.24mm x 928.26mm Working Duration7 × 16 H Transmittance88% ± 3 Lifespan50,000 hours Touch TypeInfrared Touch Screen Touch PointUp to 50-point multi-touch Touch Response Time≤ 2 ms Minimum Touch Object≥ 1.5 mm (≥ 90% touching area) Touch Precision± 0.5 mm (≥ 90% touching area) Touch Resolution32767 × 32767 Built-in System Operation SystemAndroid 13.0 Memory8 GB Built-in Storage128 GB ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz） GPUMali-G610 MC4 HDCP Version2.3 Camera PixelPixel 48MP for Photos & 8 MP for Video Camera FunctionSupport intelligent switching between Android system, OPS, and PC. Field Angle93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) Distortion≤2.5% Camera Resolution RatioUp to 4K Microphone SpecificationOmni-directional 8-array layout Mic FunctionEcho reduction and smart noise-cancellation Voice Distance12 m Sampling Rate32 K Mic Depth16 bit Internal Function LoudspeakerBuilt-in 2 × 20 W 25W loudspeaker; BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 NFCSupport screen mirroring by Android phones Light SensorYes Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction . Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. Interface Video & Audio InputHDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 Video & audio outputHDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 Control interfaceTOUCH-USB 3.0 × 3, RS232 × 1 Network Interface LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) Power Power Supply100 to 240 VAC, 50/60 Hz Standby Consumption≤ 0.5 W Average Consumption< 150W Working Environment Working Temperature0 °C to 40 °C (32 °F to 104°F) Working Humidity10%~90% RH General VESA800 mm × 400 mm （4 × M8-25 mm） Product dimensions1713.23 mm × 1034.54 mm × 82.5 mm AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control. Package Dimensions (W × H × D)1897 mm × 1150 mm × 213 mm Net Weight51.23 kg Gross Weight67.62 kg
